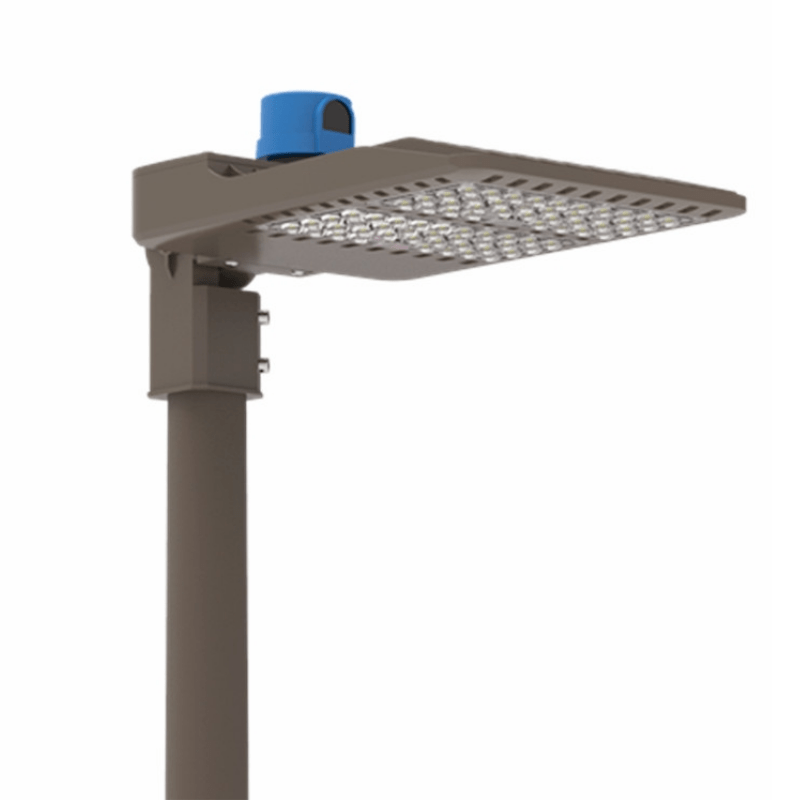

ARL Series Shoebox Area Light

WeChat

copy Link

Facebook

Twitter

① Cree/ Osram/ Philips-Lumileds and Samsung led chips options, flip chip technology, single unit’s damage won’t affect others’ normal work;

② Easy to change the driver and led modules; class I, class II driver with dimmer optional, 0-10v, PWM, Dali

③ Designed to last at least 100,000 hours at L80;

④ Multiple lighting distributions available, fit for different road and standard;

⑤ color temperatures: 3000K-6500K option

⑥ IK09 and IP67 modules: highest waterproof level, hot-pluggable, easy for installation and replacement;

⑦ ETL,DLC Certification;

⑧ Photocell led road luminaires,tool-free led street lamp;

⑨ Adjustable angle design;Power automactically switch off when opening.

⑩ 5-year limited warranty;

Download Datasheet

Inquiry

Detail

Product Description:

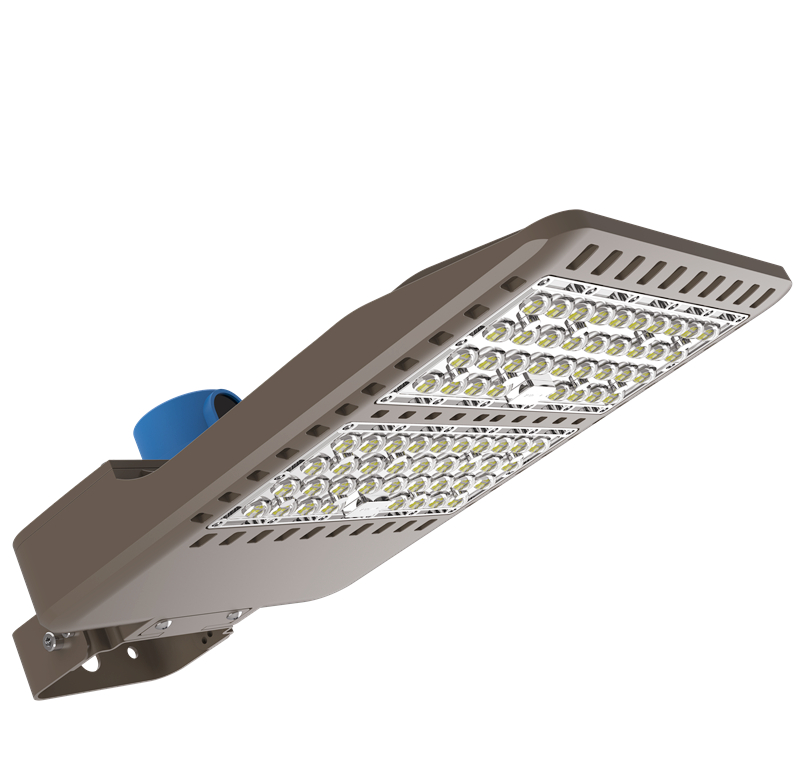

The ARL series area light from CROWNDA is a thoughtful recreation of the classic shoebox area light fixture, combined with the best of leading LED technology. The fixture footprint gives that classic look, while the slim tapered, self-cleaning profile suggests exceptional performance. The tested efficacy of 140 LM/W is offered across the family wattages from 50W through 300W. This makes the ARL series ideal for replacing legacy fixtures from 250W to 1000W MH. Options include multiple mounting configurations and NEMA PC receptacle. Other key features include: Bottom side access door, large area heat sinking above arrays, single panel optics, standard SPD of 10 KA, and low EPA ratings. Ships with an adjustable slip-fitter mount with optional fixed arm and yoke mount also available separately, see mounting options below for more information.

Features:

• High input voltage: 120-277V. 277-345V

• Full cutoff light profile

• Ground facing access door

• Modern and efficient design

• Suitable for wet location use

• Multiple optic variations available

• Matte brown TGIC polyester color finish

• 10 KA SPD surge protection

Applications:

• Commercial locations

• Parking lots
